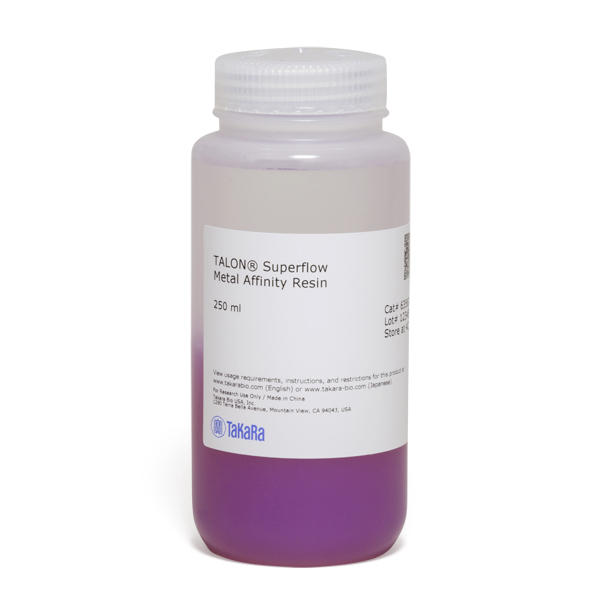

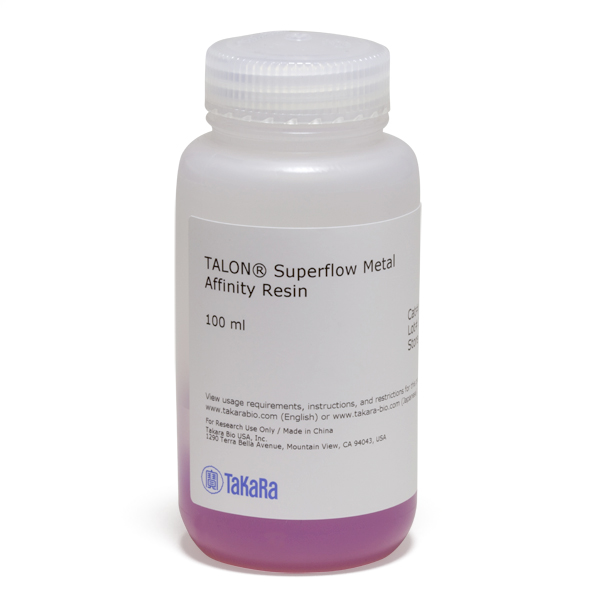

TALON Superflow Metal Affinity Resin
TALON Superflow Metal Affinity Resin
Brand: Takara Bio.
In stock
SKU
TALON Superflow Metal Affinity Resin
FPLC purification of his-tagged proteins—TALON Superflow Metal Affinity Resin
TALON his-tag purification resin lets you prepare exceptionally pure his-tagged proteins from bacterial, mammalian, yeast, and baculovirus-infected cells, under native or denaturing conditions. TALON is an immobilized metal affinity chromatography (IMAC) resin charged with cobalt, which binds to his-tagged proteins with higher specificity than nickel-charged resins. As a result, TALON resin delivers his-tagged proteins of the highest purity. In addition, each cobalt ion is bound to the resin at four sites, resulting in low metal-ion leakage.
Overview
Choice of native or denaturing purification conditions
TALON Resin retains its protein binding specificity and yield under a variety of purification conditions. It is stable under both denaturing and native (nondenaturing) conditions. Deciding whether to use native or denaturing purification conditions depends on protein location, solubility, accessibility of the his tag, downstream applications, and preservation of biological activity.
Native conditions
Purifying a protein under native conditions is the most efficient way to preserve its biological activity, but requires that the protein be soluble. Advantages include:
- Eliminating the renaturation step at the end of the purification, saving time, and preventing significant loss of activity
- Retaining the ability to copurify enzyme subunits, cofactors, and associated proteins
Denaturing conditions
Because proteins that are overexpressed in prokaryotic systems sometimes form insoluble aggregates called inclusion bodies, you may need to purify proteins under denaturing conditions—using strong denaturants such as 6 M guanidinium or 8 M urea to enhance protein solubility. Advantages include:
- Complete solubilization of inclusion bodies and his-tagged proteins
- Improved binding to the matrix and reduced nonspecific binding, due to full exposure of the his tag
His-tagged proteins purified under denaturing conditions can be used directly in subsequent applications, or may need to be renatured and refolded. Protein renaturation and refolding can be performed prior to elution from the column. However, yields of recombinant proteins will be lower than under native conditions, because urea and guanidinium molecules compete with histidines for binding to metal.
Features
- Exhibits high affinity for his-tagged proteins
- Ideal for FPLC applications
- No copurification of proteins
- Resists metal leakage
- Performs well under a wide range of purification conditions
Applications
Purified recombinant his-tagged proteins can be used for:
- Crystallography
- Functional assays
- Structural investigations
- Other applications

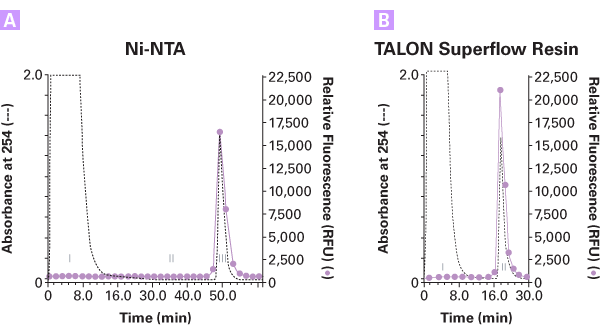

FPLC purification of 6xHis-GFPuv with TALON Superflow
FPLC purification of 6xHis-GFPuv with TALON Superflow. Nickel-NTA (Panel A) requires longer washing and lower flow rates to purify 6xHis- GFPuv than TALON Superflow Resin (Panel B). Protein was extracted in 50 mM sodium phosphate, 0.3 M NaCl, pH 7.0. Panel A.3.2 ml culture filtrate was loaded at 0.5 ml/min. Then nonadsorbed material was washed in the same buffer with 10 mM imidazole. Protein was eluted with 20 mM imidazole (Peak II) and 250 mM imidazole (Peak III). Panel B.3.2 ml culture filtrate was loaded at 1 ml/min. Then, nonadsorbed material was washed with the same extraction buffer and eluted with 150 mM imidazole (Peak II).
DS-PAGE of TALON CellThru Resin purified proteins
SDS-PAGE of TALON CellThru Resin purified proteins. E. coli BL21 cells were sonicated in TALON wash buffer and run through a TALON CellThru column eluted in 150 mM imidazole. Note that some target protein is trapped in membrane fractions and does not get absorbed on the column. M: molecular weight marker.
Native purification with TALON resin preserves biological activity of proteins
Native purification with TALON resin preserves biological activity of proteins. Fresh cells (0.5 g) expressing 6xHis-GFPuv were extracted in 5 ml of 50 mM sodium phosphate; 0.3 M NaCl, pH 7.0 Panel A. Elution profile of GFP which was loaded, washed with the same buffer, and eluted with a step gradient of imidazole (150 mM). Panel B. Fractions were analyzed by SDS-PAGE. The fluorescent signal of green fluorescent protein (GFPuv) was completely enriched by TALON Superflow Resin.
Purification of 6xHis-GFPuv under denaturing conditions using TALON resin
Purification of 6xHis-GFPuv under denaturing conditions using TALON resin. The fusion protein was purified in 8 M urea using TALON resin. M=molecular weight markers.
Native purification of 6xHis protein using TALON resin in the presence of beta-mercaptoethanol
Native purification of 6xHis protein using TALON resin in the presence of beta-mercaptoethanol. N-terminal 6xHis-tagged mouse DHFR (19.5 kDa) was expressed in E. coli. 2 ml of lysate was purified using gravity flow on TALON resin in increasing concentrations of beta-mercaptoethanol. Even lanes: 20 μl of nonadsorbed material. Odd lanes: 5 μl of eluate
Protein purification yields in the presence of beta-mercaptoethanol with TALON resin compared to Ni-NTA resin
Protein purification yields in the presence of beta-mercaptoethanol with TALON resin compared to Ni-NTA resin. N-terminal 6xHis DHFR was expressed and purified under native conditions. Protein concentrations were determined by Bradford assay. Yields are expressed as a percentage of total protein in the cell lysate.
SDS-PAGE of FPLC fractions from 6xHis-GFPuv purification
SDS-PAGE of FPLC fractions from 6xHis-GFPuv purification. Purification with TALON Superflow resin requires less washing with exceptional results.
